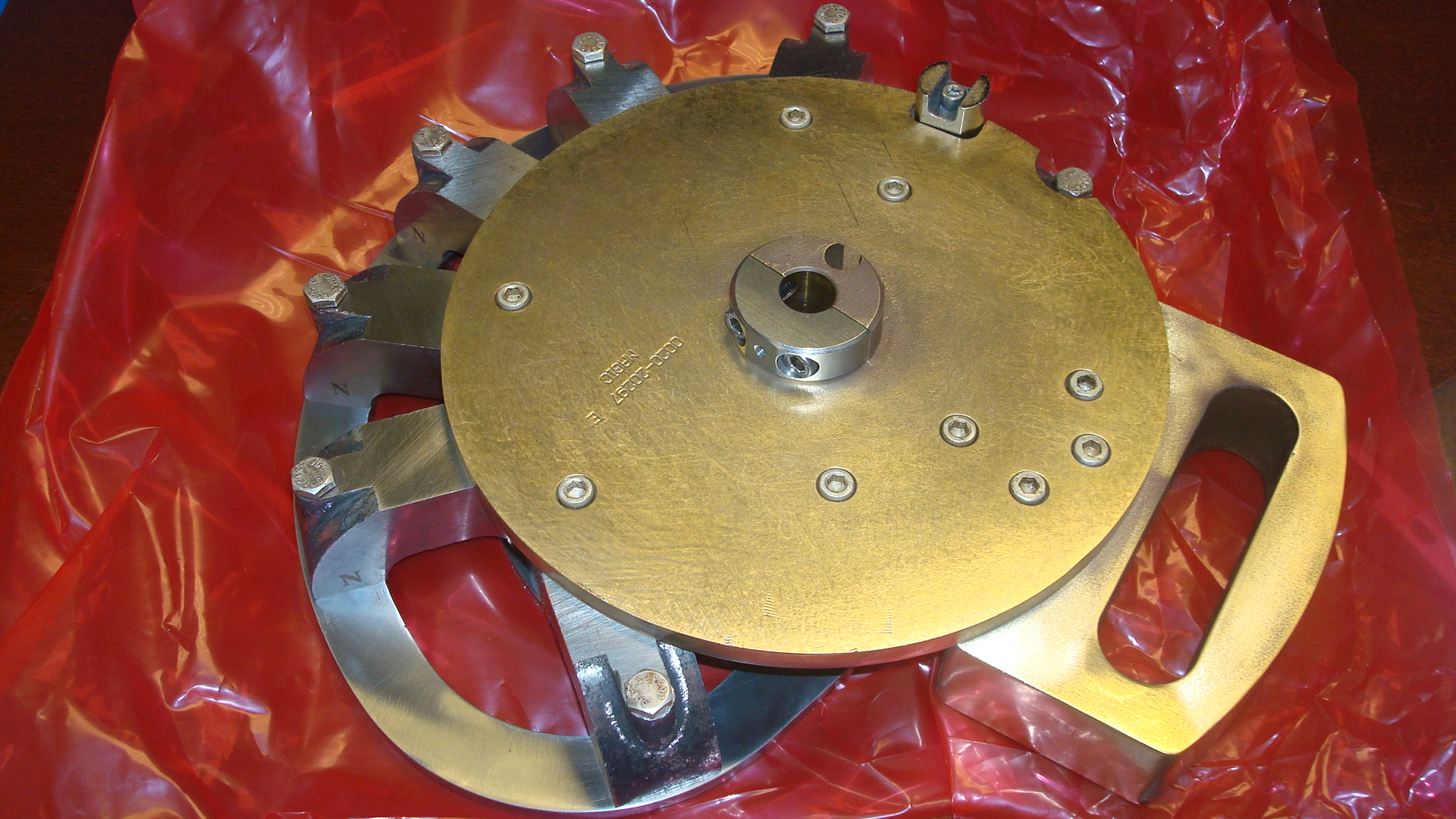

Refurbished Semiconductor Magnets

PROBLEM

  • Uneven deposition uniformity

  • Non-energized magnet

  • Corroded components

  • Mishandled or damaged parts

  • Part number conversions 844 to 810 or 810 to 844

PROCESS TO REPAIR

  • Magnet-mapping

  • Evaluate

  • Disassemble

  • Measure Individual Magnets Replace Weak Magnets (encapsulated magnet, sensor magnet)

  • Re-assemble

  • Re-map

Magnet services provided

Do not include any missing, damage or corroded parts that need to be replaced

ALL MAGNETS ARE SUBJECT TO EVALUATION BEFORE A REFURBISHMENT PRICE IS DETERMINED. THERE IS A $500 EVALUATION FEE SHOULD THE CUSTOMER CHOOSE NOT TO REFURBISH THE MAGNET.

MAGNET REFURBISH PART NUMBERS:

  • 0010-20221 Magnet, REM 11.3" Ti

  • 0010-20222 Magnet, REM 11.3" TiW

  • 0010-20223 Magnet, REM 11.3" TiN

  • 0010-20328 Magnet Assembly Durasource 13"

  • 0010-26441 Magnet Assembly Durasource 13"

  • 0010-29630 Magnet Assembly Ti Durasource 11.3"

  • 0010-26450 Magnet Assembly Ti Durasource 11.3"

  • 0010-21127 Magnet Assembly Ti Durasource 11.3"

  • 0010-26451 Magnet Assembly Durasource 13" JMWI

  • 0010-21206 Magnet Assembly Durasource 13" JMWI

  • 0010-20389 Magnet Assembly Durasource 11.3" AI

  • 0010-26442 Magnet Assembly Durasource 11.3" AI

  • 0010-29627 Magnet Assembly Durasource 11.3" AI

  • 0010-20224 Magnet Assembly 11.3" AI

  • 0010-26438 Magnet Assembly 11.3" AI

  • 0010-20225 Magnet Assembly 13" AI

  • 0010-26439 Magnet Assembly 13" AI

  • 0010-26440 Magnet Assembly 13" Ti

  • 0010-20258 Magnet Assembly 13" Ti

  • 0010-29628 Magnet Assembly Mod Durasource 11.3" TiW

  • 0010-26448 Magnet Assembly Mod Durasource 11.3" TiW

  • 0010-21020 Magnet Assembly Mod Durasource 11.3" TiW

  • 0010-21810 Magnet Assembly G-12 Encapsulated, V-Clamp

  • 0010-20768 Magnet Assembly G-12 Encapsulated, V-Clamp

  • 0010-33888 Magnet Assembly G-12 Encapsulated, V-Clamp

  • 0010-21844 Magnet Assembly Durasource TTN Encapsulated

  • 0010-33889 Magnet Assembly Durasource TTN Encapsulated

  • 0010-21403 Magnet Assembly Durasource TTN Encapsulated

  • 0010-33890 Magnet Assembly G-3 Encapsulated

  • 0010-76693 Magnet Assembly G-3 Encapsulated

  • 0010-21940 Magnet Assembly G-3 Encapsulated

  • 0010-04065 Assembly, Magnet, SIP, Rev 2

    *This is a partial list, upon request we can refurbish magnets not listed


SERVICES PERFORMED:

Map, disassemble, clean, re-magnetize, reassemble, re-map

Includes: Certificate of Conformance, before and after maps

ALL OTHER MAGNETS:

Map, disassemble, clean, re-magnetize, reassemble, re-map

Includes: Certificate of Conformance, before and after maps

ADDITIONAL ITEMS:

•New Pole Pieces

•New Counter Balance

•New Holder

•Mapping Only

•New Magnet Box and Foam Set

•Conversion from 844 to 810 or 810 to 844







Warranty and Additional Information

WARRANTY

  • 90 day warranty on workmanship only from time of shipment.

  • Any attempt to take apart a magnet voids any and all warranty.

  • Any attempt to alter, add, engrave or mark on magnet will void the warranty.

  • Warranty is void due to mishandling by customer or shipper or damage in shipping.

  • King Precision is not liable for any misuse, abuse or lost packaging during transit. If you feel that the package is damage, please file a claim through your shipping carrier.

  • Warranty is void if customer decides to ship unit in non-approved heater or magnet box.

  • Buyer is responsible for all shipping charges.

  • If product is found to be defective, King Precision has sole option to replace product, return funds or credit account.

  • Authorization from King Precision is required before returning product for credit or evaluation.

SEE BELOW, FOR TYPICAL ISSUES WITH MAGNETS

  • There is not a warranty from AMAT on magnets performance-only workmanship.

  • If you set an A type magnet next to another magnet, it will damage the magnetic field. It will not show any signs of damage until they run process.

  • If the magnet reaches moderate high temperature it will damage the magnetic field. This usually shows a slight discoloration.

  • If the magnet is dropped, it can push the magnets out of position and re-form magnet field. You should be able to see damage.

  • If it is mounted incorrectly and then they try to move magnets around, that changes magnetic profile. These can be seen with changes on the map profile.
